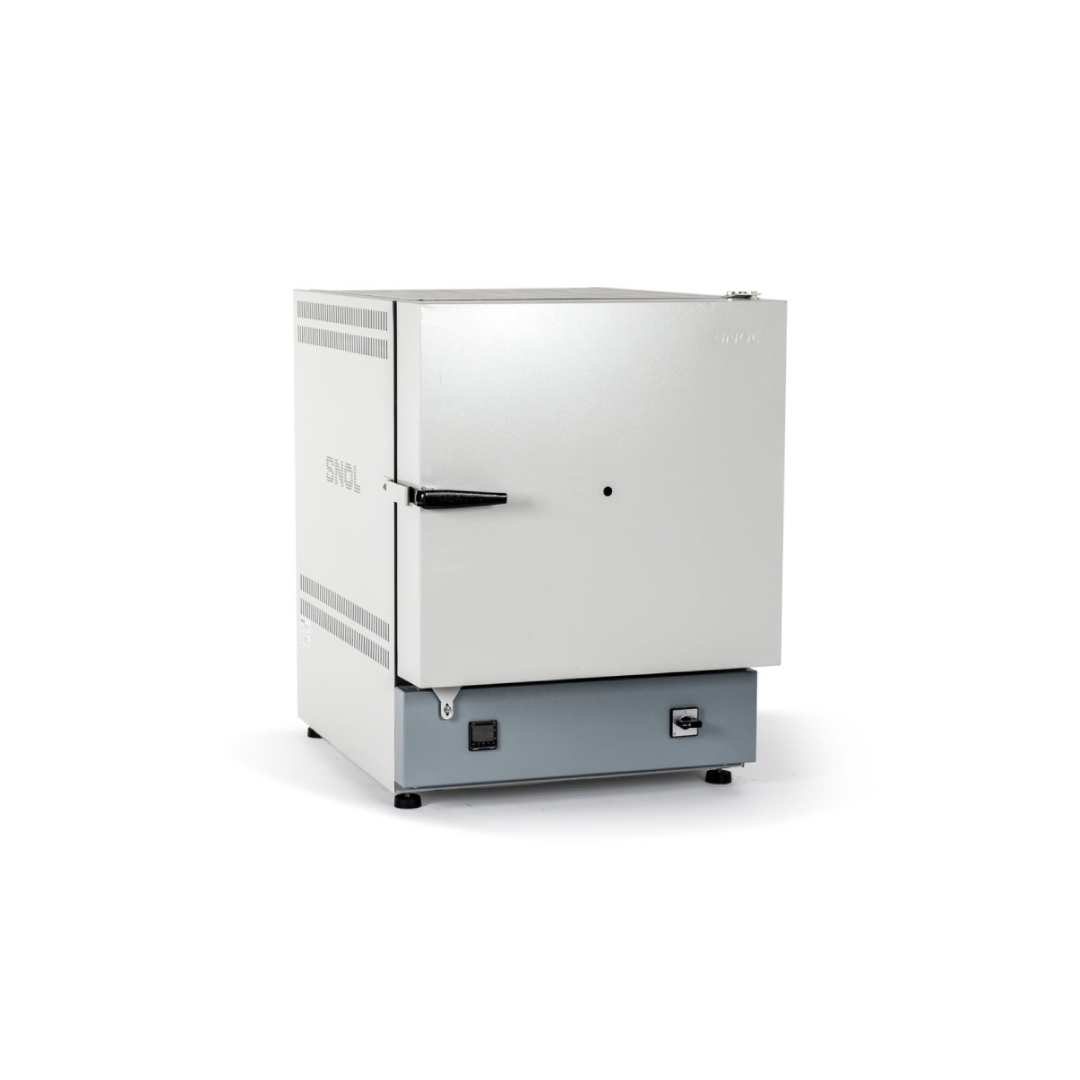

SNOL 30/1300 ashing furnace with a chamber made of fiber thermal insulation plates, is designed for ashing and burn off processes up to 1300°C. Fan-assisted chimney permits to eliminate smokes from chamber during process time.
BASIC MODEL
- Chamber made from fiber thermal insulation plates
- Heating elements are wrapped on tubes in two sides of the chamber
- Fan-assisted chimney for smoke and humidity extraction
- Continuous air change in the chamber
- Door opens to the right side
- Door safety interlock switch
- Microprocessor – temperature controller
- Outside casing – metal sheet, powder painted grey
- High quality, ecological thermal insulation material
- Low electric power consumption
- Short heating up/cooling down period
- High degree of accuracy
- 1 year warranty
OPTIONS
- Additional ceramic hearth plates
- Buzzer
- Digital timer
- Protection against overheating
- Data recorder
- Data communication/USB
- Calibration of temperature measurement system
- Additional 1 year warranty
Specification
| Technical data | Dimension | SNOL 30/1300 LSF21 |
| Useful volume | Liter | 30 |
| Rated power not more than | kW | 4.6 |
| Rated supply voltage | V | 230 |
| Rated frequency | Hz | 50 |
| Number of phases | – | 1 |
| Continuous operating temperature | °C | T+10-1300 |
| Maximum temperature | °C | 1300 |
| Working chamber material | – | Fiber plates |
| Maximum heating- up time (without charge) | Min. | 150 |
| Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than | ± °C | 1 |
| Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than | ±°C | 10 |
| Furnace working chamber dimensions: | ||
| width | mm | 200 |
| depth | mm | 425 |
| height | mm | 290 |
| Furnace external dimensions: | ||
| width | mm | 645 |
| depth | mm | 920 |
| height | mm | 835* |
| Mass | kg | 120 |
* – should increase by 20-85 mm, depending on the chimney
