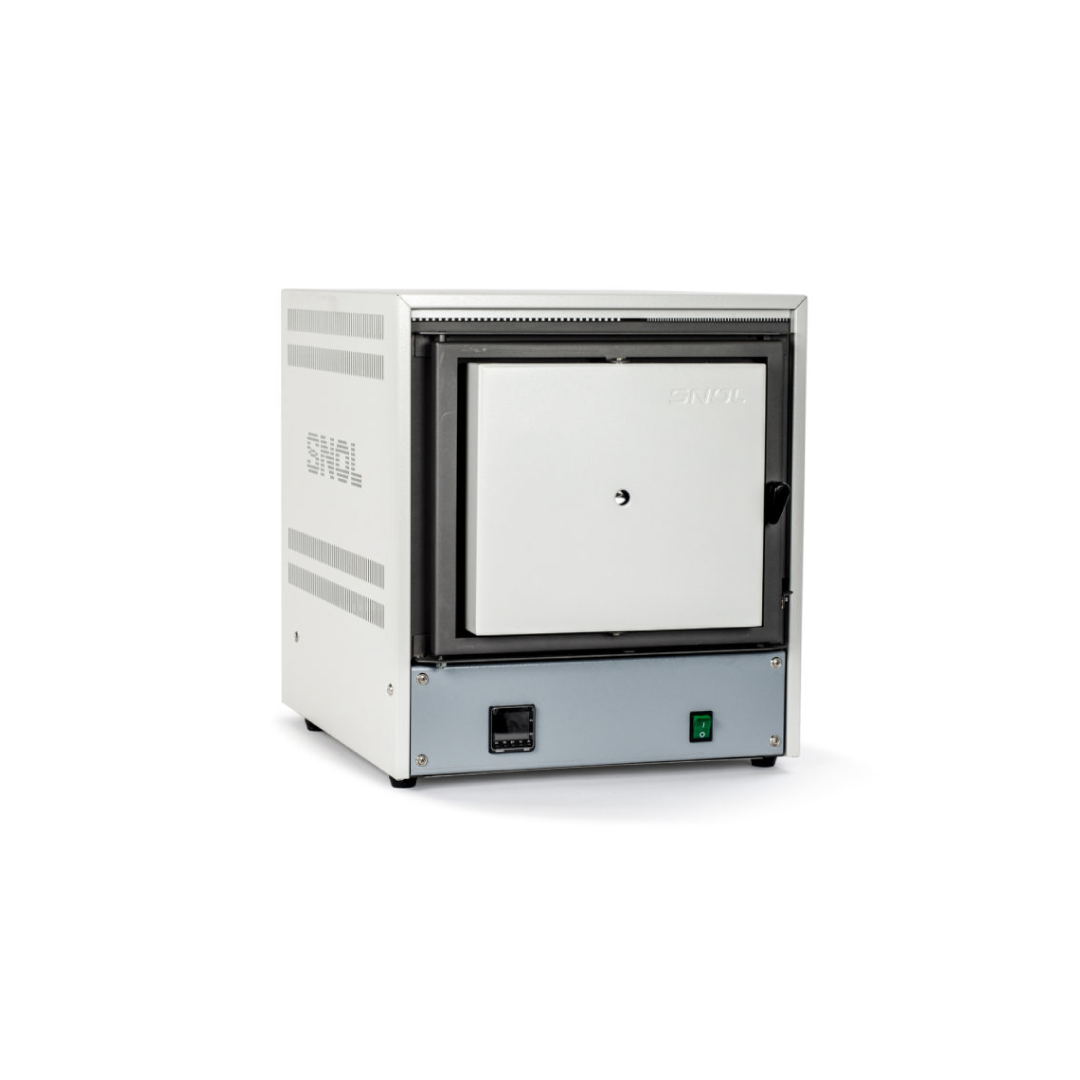

High accuracy electric muffle furnace SNOL 8.2/1100 is a universal laboratory furnace, designed for material testing, heat treatment such as hardening, loosening, normalising, ceramic and stoneware samples firing up to 1100°C. To eliminate gasses or smokes that are released during thermal processing an exhaust system may be additionally installed in the products. The furnace is an excellent fit for scientific laboratories, educational institutions, ceramic studios, medicine and industry.
BASIC MODEL
- One piece high thermal efficiency, vacuum-formed ceramic fiber chamber,
- Heating elements, embedded in a vacuum formed fiber, are inside four walls of the chamber,
- Outside casing – metal sheet, powder painted grey,

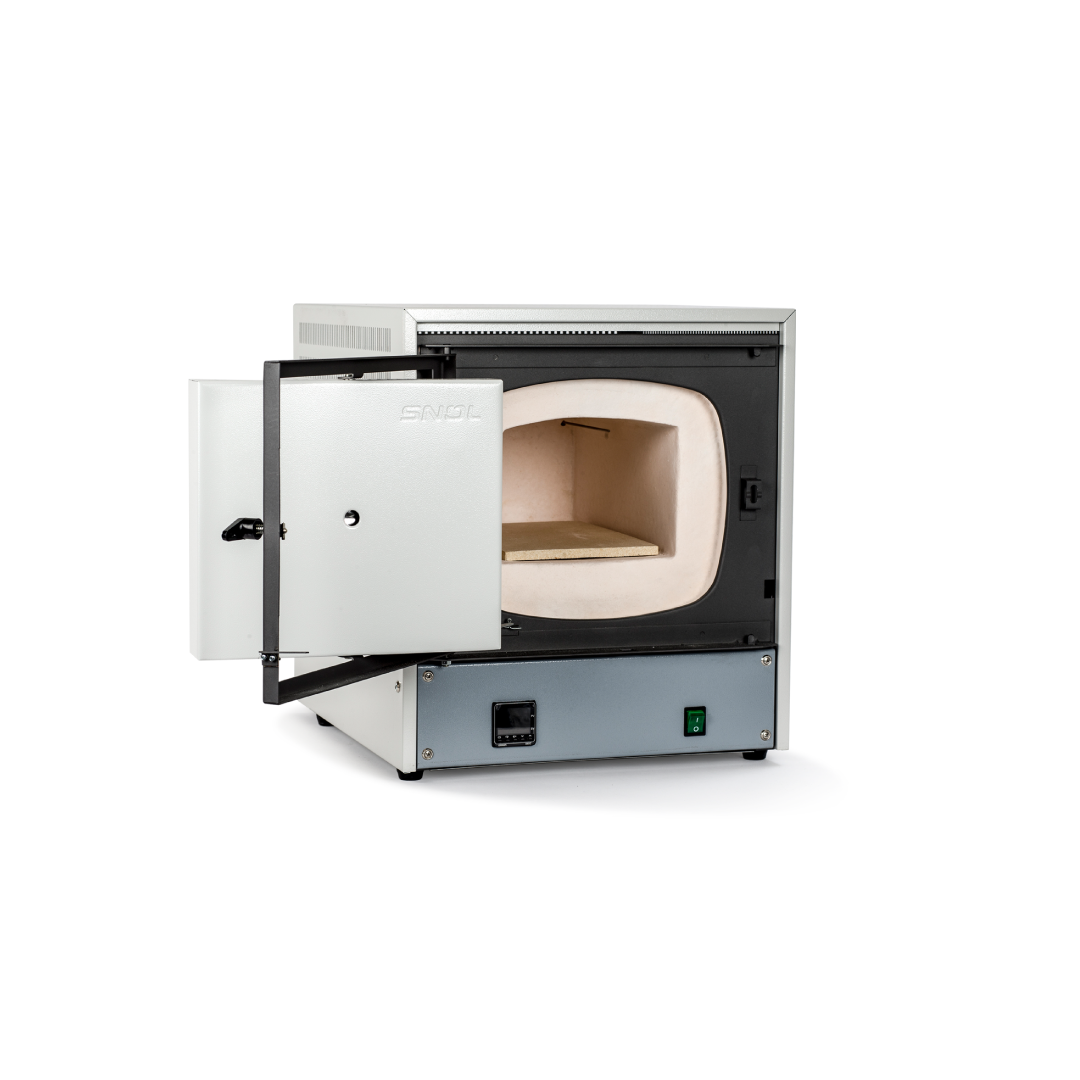

- Door opens sideways,
- Door safety interlock switch,
- Control panel is placed in the underpart of the furnace,
- Microprocessor – temperature controller,
- Ceramic bottom plate,
- Fast heating time due to low thermal mass construction,
- Low power consumption,
- Good stability and uniformity,
- 1 year warranty.
OPTIONS
- Process observation window (o 35 mm) up to 1100 °C
- Fan-assisted chimney for air extraction
- Additional ceramic hearth plates
- Buzzer
- Digital timer
- Protection against overheating
- Data recorder
- Data communication/USB
- Calibration of temperature measurement system
- Table for supporting the furnace
- Protective gas atmosphere
- Gas box up to 1100 °C
- Metal tray
- Additional 1 year warranty
Specification
Technical data | Dimension | SNOL 8,2/1100 LSM01 |
Useful volume | Liter | 8,2 |
Rated power not more than | kW | 1.8 |
Rated supply voltage | V | 230 |
Rated frequency | Hz | 50 |
Number of phases | – | 1 |
Continuous operating temperature | °C | T+10-1100 |
Maximum temperature | °C | 1100 |
Working chamber material | – | Fiber muffle |
Maximum heating- up time (without charge) | Min. | 50 |
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than | ± °C | 1 |
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than | ±°C | 10 |
Furnace working chamber dimensions: | ||
width | mm | 195 |
depth | mm | 310 |
height | mm | 135 |
Furnace external dimensions: | ||
width | mm | 440 |
depth | mm | 530 |
height | mm | 495 |
Mass | kg | 25 |
